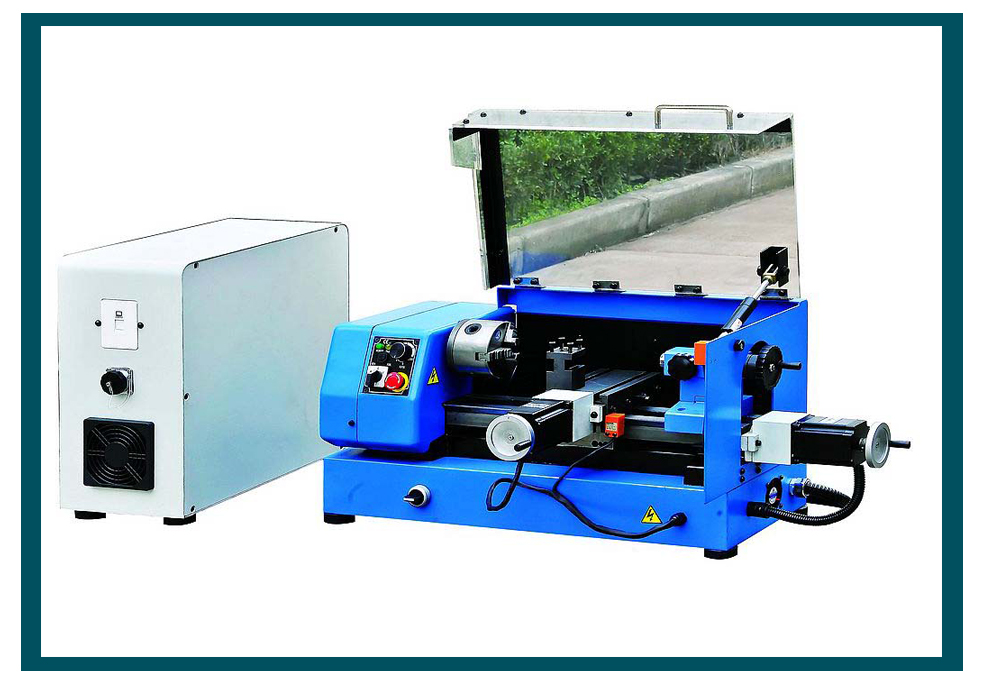

PECO MINI CNC LATHE MODEL PTC-1
FEATURES :-
- • Low cost
- • Manual hand wheel Pre-installed
- • PC-Based micro CNC lathe
- • Auto power off when door open
- • Best for education and training
- • Combine with CNC and Manual
- • 2 in 1 (CNC&Manual)
TECHNICAL SPECIFICATION :-
| WORKING AREA | Turning diameter over bed(max) | 140mm |
| Travel across slide | 75mm | |
| Center width | 250mm | |
| SPINDLE | Chuck diameter | 80mm |
| Spindle speed | 100-2000r/min | |
| Spindle through-hole | 11mm | |
| Spindle mount | MT2 | |
| Spindle motor power | 150W | |
| FEED (stepper) | X travel | 100mm |
| Z travel | 150mm | |
| The max moving speed | 300mm/min | |
| The max feeding speed | 200mm/min | |
| Motor(X/Z) | 1.35N.m/3.1N.m | |
| TOOL REST | Tool position | 1 |
| Tool dimension | 8×8mm | |
| TAILSTOCK | Tailstock taper | MT1 |
| Tailstock sleeve diameter | 20mm | |
| Travel of tailstock | 25mm | |
| ACCURACY | Positioning accuracy | 0.02mm |
| Repeatability accuracy | 0.02mm | |
| OTHERS | Power | 220V/110V |
| Weight（NW/GW） | 45/65KG | |
| Dimension | 730×380×350mm |

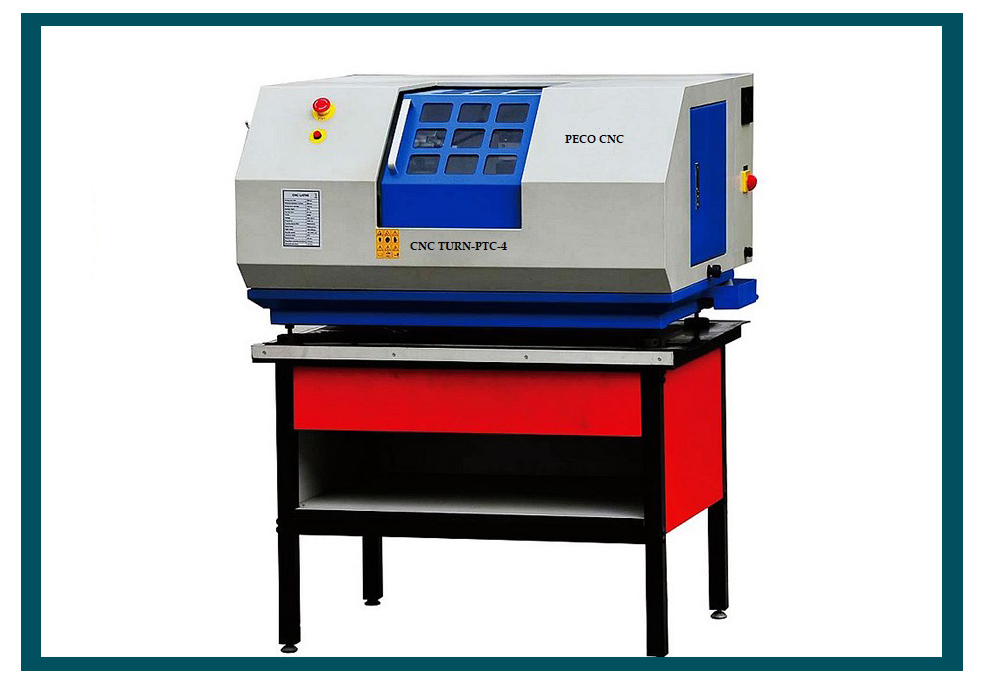

PECO CNC LATHE MODEL-PTC-4
FEATURES :-
- • PC based CNC system,highreliability,operate simple
- • Connect with PC via network cable
- • High quality 2axis step motor,high torque brushless motor
- • Metric MT3 spindle
- • Automatic 4 positions tool post
- • High strength guide way
TECHNICAL SPECIFICATION :-
| WORKING AREA | Turning diameter over bed(max) | 200mm |
| Travel across slide | 100mm | |
| Center width | 380mm | |
| SPINDLE | Chuck diameter | 100mm |
| Spindle speed | 100-3000r/min | |
| Spindle through-hole | 20mm | |
| Spindle mount | MT3 | |
| Spindle motor power | 500W | |
| FEED (stepper) | X travel | 75mm |
| Z travel | 280mm | |
| The max moving speed | 2000mm/min | |
| The max feeding speed | 500mm/min | |
| Motor(X/Z) | 1.35N.m/3.1N.m | |
| TOOL REST | Tool position | 4 |
| Tool dimension | 8×8mm | |
| TAILSTOCK | Tailstock taper | MT2 |
| Tailstock sleeve diameter | 22mm | |
| Travel of tailstock | 50mm | |
| ACCURACY | Positioning accuracy | 0.015mm |
| Repeatability accuracy | 0.01mm | |
| OTHERS | Power | 220V/110V |
| Weight（NW/GW） | 210/250KG | |
| Dimension | 1000×780×565/1200×940×770mm |

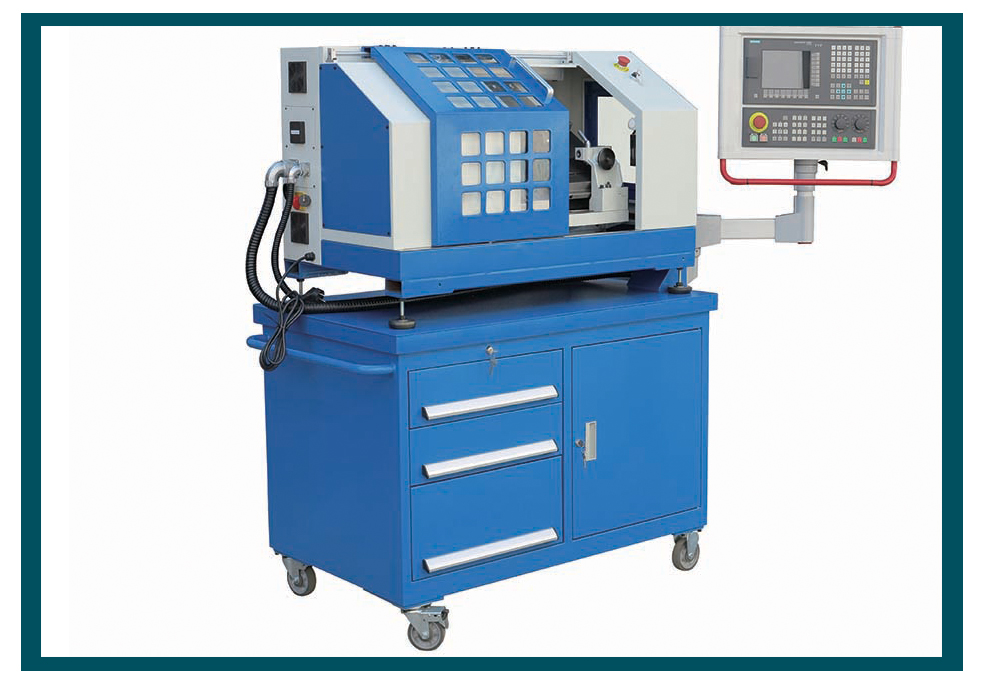

PECO CNC LATHE MODEL-PTC4-S
FEATURES :-
- • 8 station ATC
- • Slant slideway
- • Ultra high Precision linear rails
- • CE certificate
TECHNICAL SPECIFICATION :-
| WORKING AREA | Turning diameter over bed(max) | 200mm |
| Travel across slide | 90mm | |
| Center width | 280mm | |
| SPINDLE | Chuck diameter | 100mm |
| Spindle speed | 100-3000r/min | |
| Spindle through-hole | 20mm | |
| Spindle mount | MT3 | |
| Spindle motor power | 1000W | |
| FEED | X travel | 100mm |
| Z travel | 175mm | |
| The max moving speed | 3000mm/min | |
| Motor | 3N.m | |
| TOOL REST | Tool position | 8 |
| Tool dimension 4 internal | ɸ12mm | |
| 4 external | 8×8mm | |
| TAILSTOCK | Tailstock taper | MT1 |
| Tailstock sleeve diameter | 22mm | |
| Travel of tailstock | 30mm | |
| ACCURACY | Positioning accuracy | ±0.010mm |
| OTHERS | Repeatability accuracy | ±0.005mm |
| OTHERS | Power | 230V/110V |
| Weight（NW/GW） | 210/250kg | |
| Overall dimension | 1070×690×760mm | |
| Packing Size | 1260×890×1020mm |

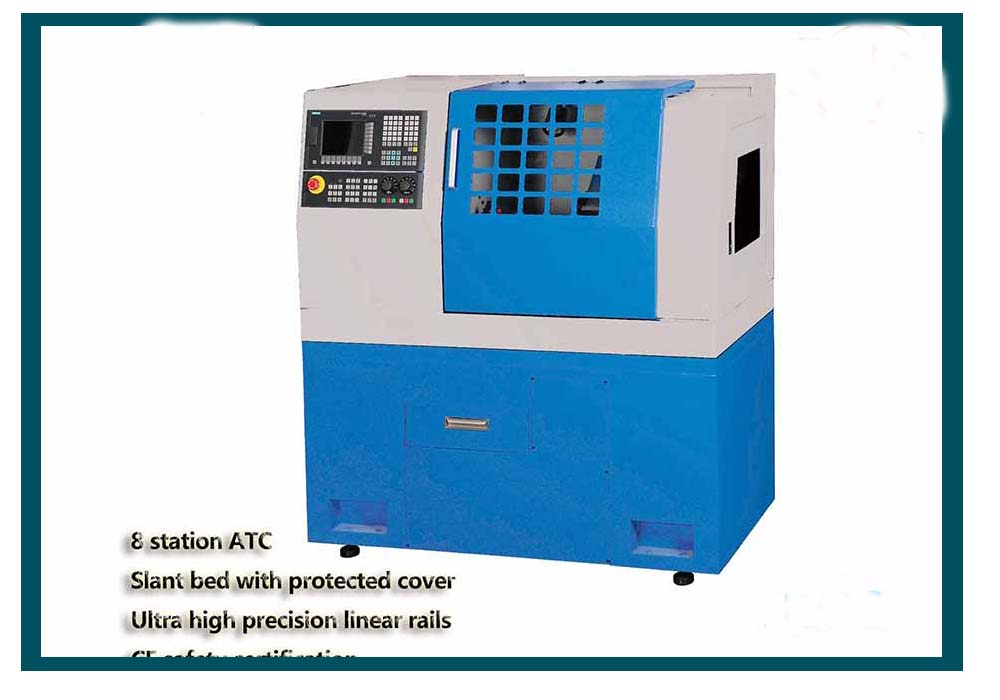

PECO CNC LATHE MODEL: PTC-6
FEATURES :-
- • 8 station ATC
- • Slant bed with protected cover
- • Ultra high Precision linear rails
- • CE safety certification
TECHNICAL SPECIFICATION :-
| WORKING AREA | Turning diameter over bed(max) | 300mm |
| Travel across slide | 100mm | |
| Center width | 400mm | |
| SPINDLE | Chuck diameter | 125mm |
| Spindle speed | 100-3000r/min | |
| Spindle through-hole | 20mm | |
| Spindle mount | MT3 | |
| Spindle motor power | 1500W | |
| FEED | X travel | 240mm |
| Z travel | 320mm | |
| The max moving speed | 5000mm/min | |
| The max feeding speed | 1000mm/min | |
| Motor | 400w | |
| TOOL REST | Tool position | 8 |
| Tool dimension | 10*10mm | |
| TAILSTOCK | Tailstock taper | MT2 |
| Tailstock sleeve diameter | 17mm | |
| Travel of tailstock | 50mm | |
| ACCURACY | Positioning accuracy | 0.01mm |
| Repeatability accuracy | 0.01mm | |
| OTHERS | Power | 230/110V |
| Weight（NW/GW） | 620kg | |
| Dimension | 1400×770×1600mm |
PECO CNC LATHE MODEL PTC6-S
FEATURES :-
- • 8 station ATC
- • Slant bed with protected cover
- • Ultra high Precision linear rails
- • CE safety certification
TECHNICAL SPECIFICATION :-
| WORKING AREA | Turning diameter over bed(max) | 300mm |
| Travel across slide | 100mm | |
| Center width | 400mm | |
| SPINDLE | Chuck diameter | 125mm |
| Spindle speed | 100-3000r/min | |
| Spindle through-hole | 20mm | |
| Spindle mount | MT3 | |
| Spindle motor power | 1500W | |
| FEED | X travel | 240mm |
| Z travel | 320mm | |
| The max moving speed | 5000mm/min | |
| The max feeding speed | 1000mm/min | |
| Motor | 400w | |
| TOOL REST | Tool position | 8 |
| Tool dimension | 10*10mm | |
| TAILSTOCK | Tailstock taper | MT2 |
| Tailstock sleeve diameter | 17mm | |
| Travel of tailstock | 50mm | |
| ACCURACY | Positioning accuracy | 0.01mm |
| Repeatability accuracy | 0.01mm | |
| OTHERS | Weight（NW/GW） | 620kg |
| Dimension | 1400×770×1600mm |
PECO CNC LATHE MODEL PTC6-SI
FEATURES :-
- • 8 station ATC
- • Slant bed with protected cover
- • Ultra high Precision linear rails
- • CE safety certification
TECHNICAL SPECIFICATION :-
| WORKING AREA | Turning diameter over bed(max) | 300mm |
| Travel across slide | 100mm | |
| Center width | 400mm | |
| SPINDLE | Chuck diameter | 125mm |
| Spindle speed | 100-3000r/min | |
| Spindle through-hole | 20mm | |
| Spindle mount | MT3 | |
| Spindle motor power | 1500W | |
| FEED | X travel | 240mm |
| Z travel | 320mm | |
| The max moving speed | 5000mm/min | |
| The max feeding speed | 500mm/min | |
| Motor | 400w | |
| TOOL REST | Tool position | 8 |
| Tool dimension | 10*10mm | |
| TAILSTOCK | Tailstock taper | MT2 |
| Tailstock sleeve diameter | 17mm | |
| Travel of tailstock | 50mm | |
| ACCURACY | Positioning accuracy | 0.01mm |
| Repeatability accuracy | 0.01mm | |
| OTHERS | Power | 230V/110V |
| Weight（NW/GW） | 620 KG | |
| Dimension | 1400×770×1600mm |
