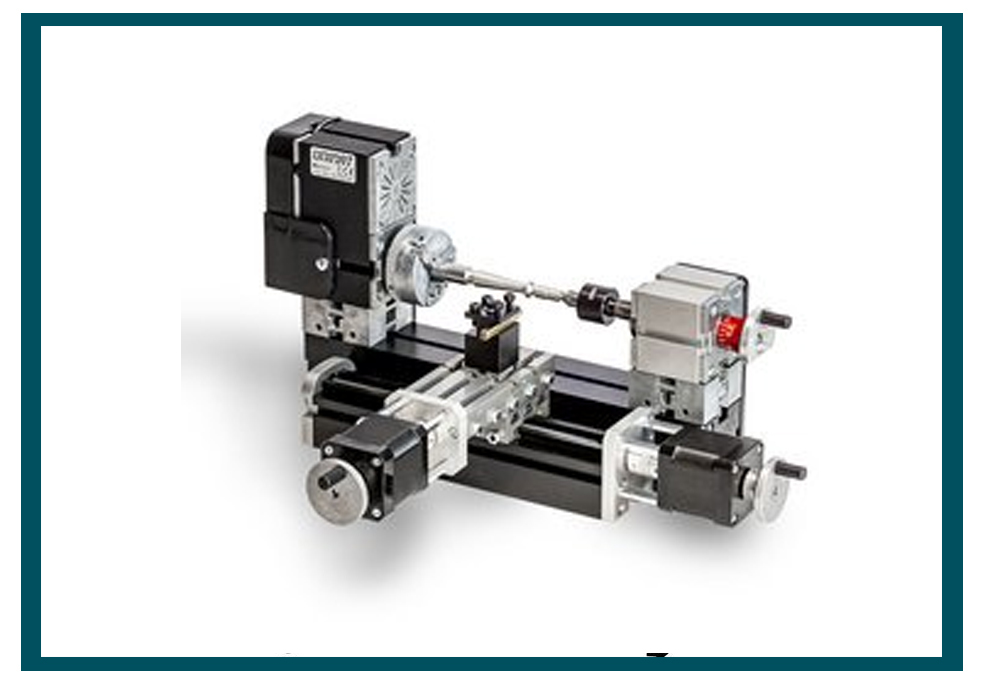

UNIMAT CNC Lathe UNI-DREH
3-Jaw-Chuck, The Precision Engineering Co. live centre, tool post and turning tool. Machinable materials: wood, acrylics, wax, non-ferrous and soft metals.
TECHNICAL SPECIFICATION :-
| Drive | Steppers, 2 A, 1.8° |
| Nubmer of CNC axes | 2 |
| Max. positioning speed | 300 mm/min |
| Head spindle | 4000 U/min |
| Travel X/Z | 50 mm/145 mm (expandable) |
| Accuracy | 0.05 mm |
| 3-Jaw-Chuck | Clamping capacity 1.8 - 56 mm inside, 12 - 65 mm outside |

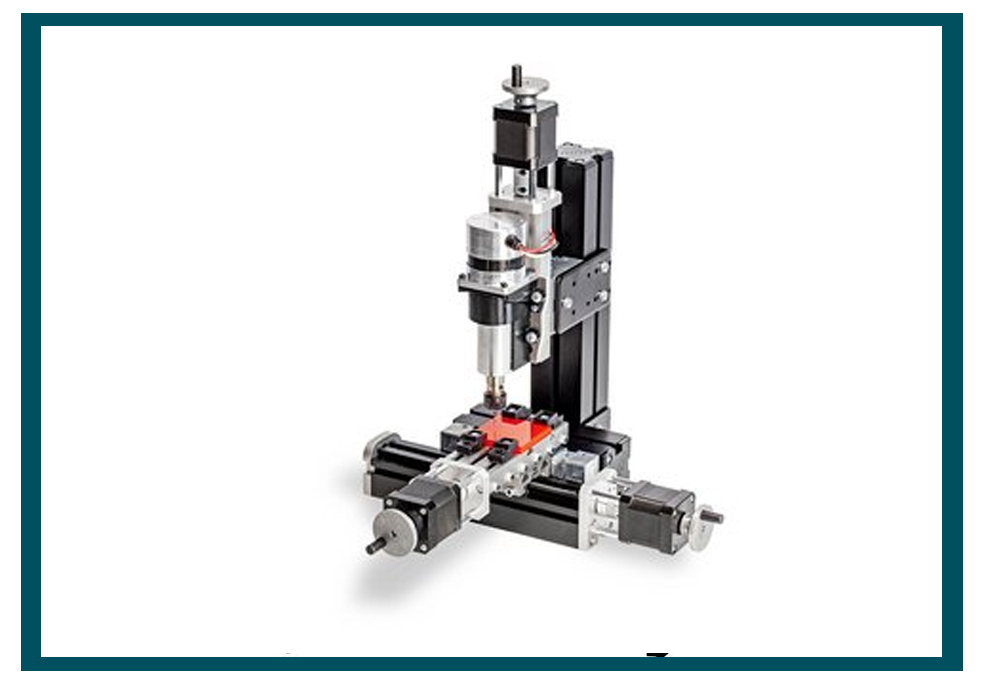

UNIMAT CNC 3-Axis Mill UNI-FRAES-3 (H3/V3)
For vertical or horizontal set-up.
TECHNICAL SPECIFICATION :-
| CNC-Axes | 3 |
| Drive Max. | Steppers, 2A, 1.8° |
| positioning speed | 300 mm/min |
| Travels Z/Y | 50 mm (expandable)/50 mm |
| Travel X-axis | 145 mm (expandable) |
| Accuracy | 0.07 mm |
| Head spindle | 4000 rpm, with 1/8" collet |

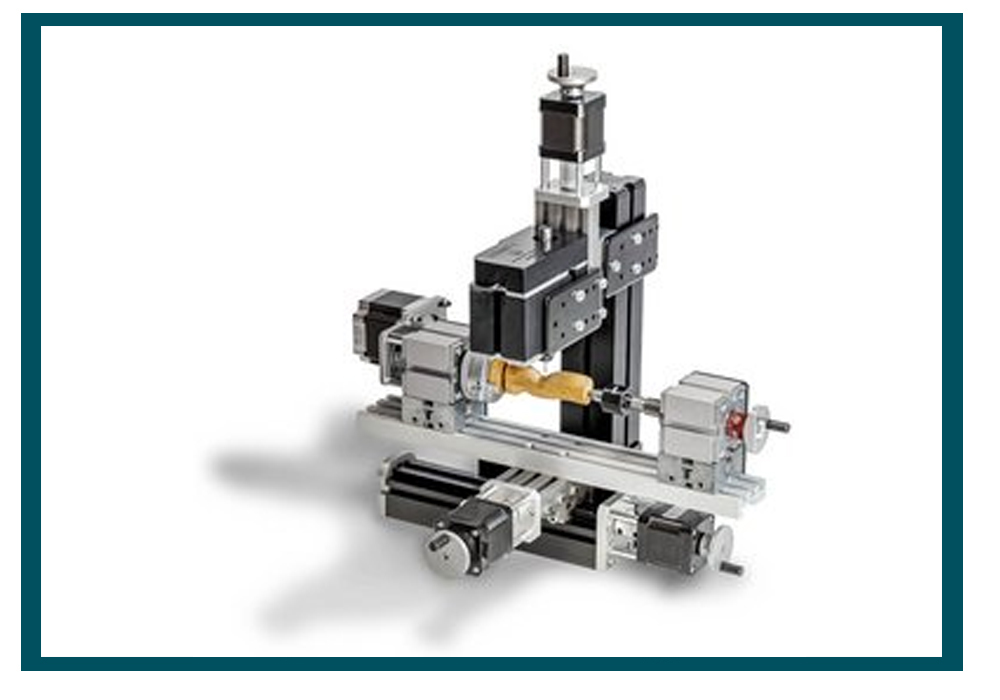

UNIMAT CNC 4-Axis Mill UNI-FRAES-4
TECHNICAL SPECIFICATION :-
| Number of CNC axes | 4 |
| Drive Max. | Steppers, 2 A, 1.8° |
| positioning speed | 300 mm/min |
| Travels Z/Y | 50 mm (expandable)/50 mm |
| Travel X-axis | 145 mm (expandable) |
| Increment Rotation Axis | (360°/3200)*0.5 = 0.05625° |
| Accuracy | 0.07 mm |
| Head Spindle | 4000 rpm, with 1/8" collet |

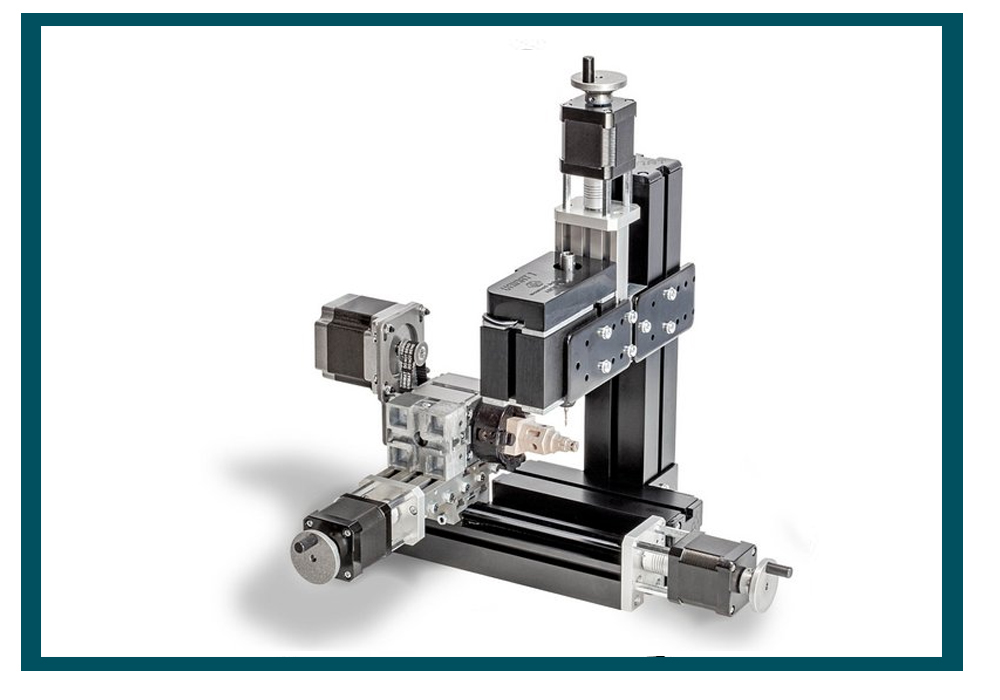

UNIMAT CNC Complete Set UNI-CNC-SET
Incl. all parts for the UNIMAT-CNC machine variants UNI-DREH, UNI-FRAES3 and UNI-FRAES4, plus cross plate for bigger parts.
TECHNICAL SPECIFICATION :-
| Number of CNC axes | 4 |
| Drive Max. | Steppers, 2 A, 1.8° |
| positioning speed | 300 mm/min |
| Travels Z/Y | 50 mm (expandable)/50 mm |
| Travel X-axis | 145 mm (expandable) |
| Increment Rotation Axis | (360°/3200)*0.5 = 0.05625° |
| Accuracy | 0.07 mm |
| Head Spindle | 4000 rpm, with 1/8" collet |
| Chuck | 3-jaw chuck metal, 4-jaw chuck plastic |
Controller TCTControl TCTCONT4
Required for controlling the UNIMAT CNC machines
The pre-installed software allows for loading, manipulating and processing of ISO standard g-code files (RS-274). It also offers an editable tool table and tool path simulation. in addition to the manual also a training book for introduction to CNC and g-code programming is included.
TECHNICAL SPECIFICATION :-
| Software and Drivers | Win (7, 8, 10) OSX, Linux |
| Connectivity | USB, Ethernet, WIFI (optional) |
| Axes controllable | 4 (upgradeable to 6) |
| furhter IOs: | 6x input for (limit/end) switches, 1x E-stop, 2x relays, 0-10V control signal |
| Micro steps | 16 |
| Board | 1GHz CPU, 512MB DDR3 RAM, 4GB storage |
| Power supply | External, 110-240 V, 24 V, 5 A |
